| Number of Channels | 10 |
| External input/output | Trigger input or External sample pulse (1ch), Logic input (4ch) or Pulse input (4ch), Alarm output (4ch) |
| Data backup functions | Setup parameters: EEPROM/Clock: Lithium battery |
| Clock accuracy:
(23°C environment) |
±0.002% (accurate within about 50 seconds per month) |
| Operating environment | 0 to 45°C, 5 to 85% RH (0 to 40°C when operated in batteries/15 to 35°C when battery is charging) |
| Withstand voltage | Between each input ch and GND terminal: 350Vpp 1 minute Between each input terminals: 350Vp-p 1 minute |
| Power supply | AC adapter : 100 to 240 VAC, 50 to 60 Hz DC input : 8.5 to 24 VDC (26.4 V max.) Battery pack (option) : 7.2 VDC (2900 mAh) |
| External Dimensions | 188×117×42mm (not including protruding parts) |
| Weight | 500 (excluding AC adapter and battery) |
| Vibration-tested conditions: | Equivalent to automobile parts Type 1 Category A classification |
| Memory capacity | SD CARD Slot: 2 (Compatible with SDHC, up to approx. 32GB memory available) • Approx. 4GB internal, non volatile memory • Possible to save up to 2GB for one file |
| Memory contents | Setup conditions, Measured data, Screen copy |

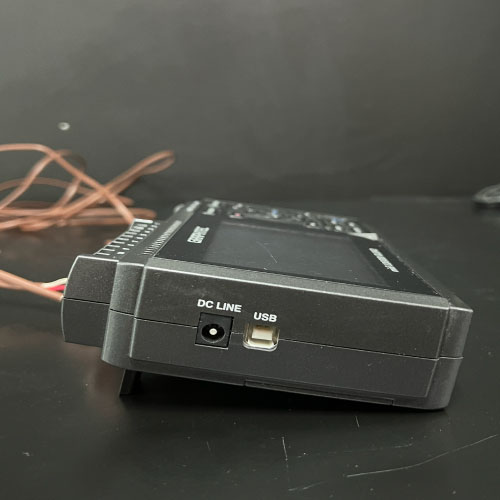

| Interface types | USB 2.0; Wireless LAN (Option) |
| Functions | Data transfer to the PC (realtime, SD memory card data) PC control of the GL240 Control of wireless sensor (GL100-WL), Data capture (only when connected to the wireless LAN: up to 1 units) |
| USB functions | USB drive mode: Transfer and delete the captured data in the SD memory card |
| Realtime data transfer speed | 10 ms/1 ch maximum (dependant on number of channels). |

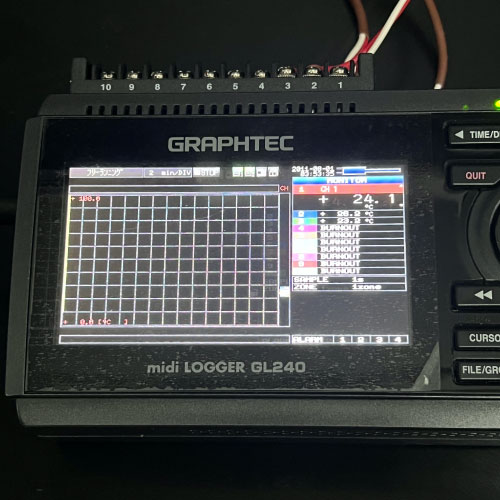

| Display | 4.3-inch TFT color LCD (WQVGA: 480×272 dots) |
| Backlight life | 50,000 hrs (until the brightness is reduced to 50%), It varies with operating environment |
| Backlight | Screen saver function provided (10, 30 sec., 1, 2, 5, 10, 30, 60 min.) |
| Number of input channels | 10 channels |

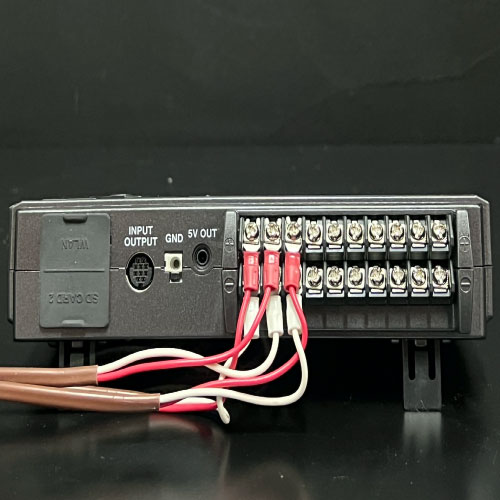

| Input terminal type | M3 screw type terminals (Rectangular flat washer) |
| Input method | Photo MOS relay scanning system All channels isolated, balanced input |
| Scan speed | 10 ms/1 ch maximum |
| Measurement ranges | Voltage: 20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20, 50, 100 V; 1-5 V F.S. Temperature Thermocouples : K, J, E, T, R, S, B, N, W (WRe5-26) Humidity: 0 to 100% (voltage 0 to 1 V scaling conversion) Requires B-530 (optional) |
| Compatible OS | Windows8.1/Windows8/Windows7/Windows Vista |
| Function | Main unit control, realtime data capture, data conversion |
| Number of groups | 4 groups MAX |
| Number of CHs per group | Up to number of connected module |
| Max number of channels | 1000 ch maximun |
| Settings | AMP settings, capture settings, trigger/alarm settings, report settings, others |
| Captured data | Realtime data (CSV, GBD Binary) Data in SD memory card (CSV, GBD binary) |
| Display | Analog waveforms, logic waveforms, pulse waveforms, digital values |
| Display modes | Y-T View, Digital View, X-Y View between Cursors (only during replay) |
