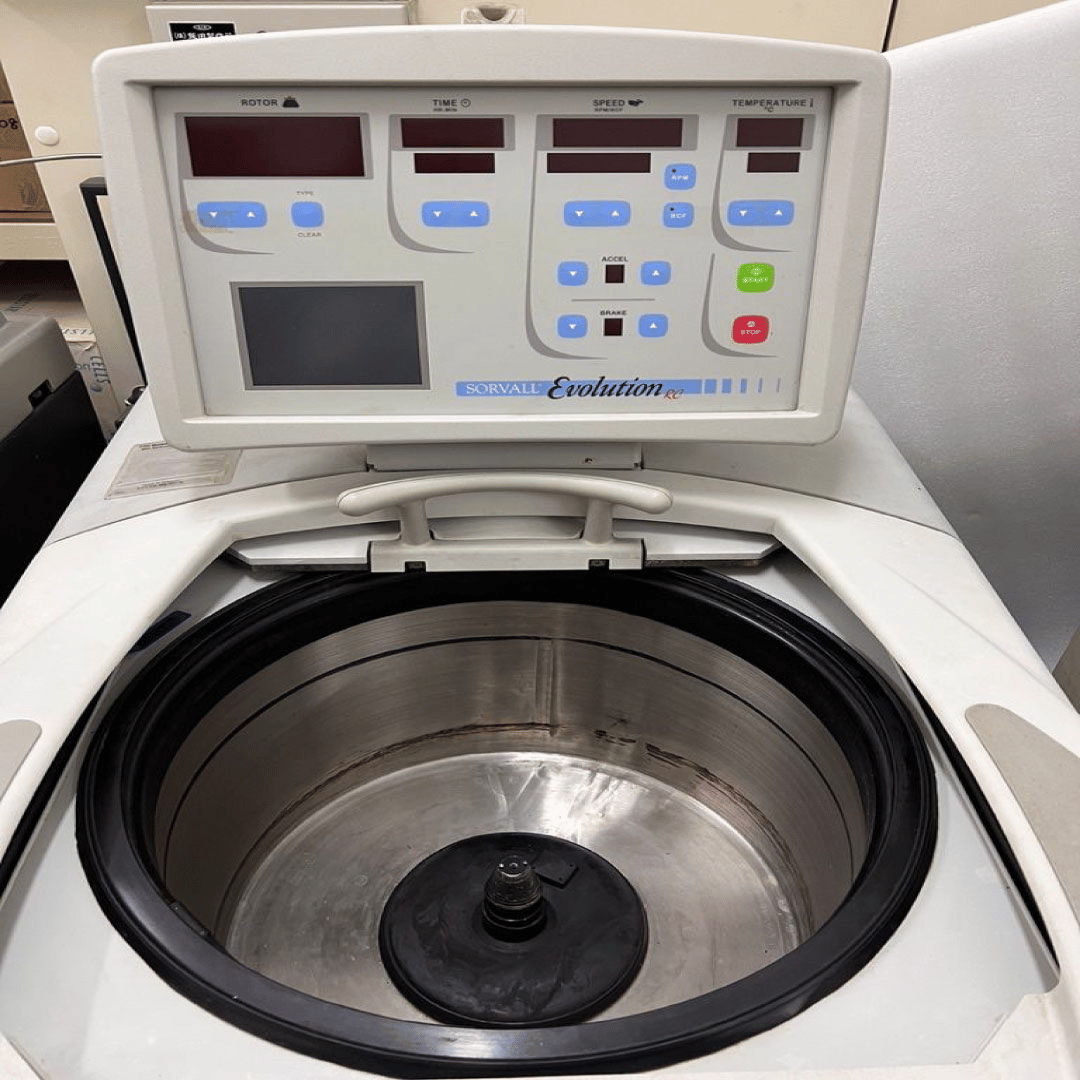

Specifications
• Maximum speed: 26,000 rpm
• Maximum RCF: 70,450 xg
• Maximum capacity: 6 liters
• Drive system: Brushless DC motor with gyro drive
• Speed control accuracy: ± 20 rpm in the 0 – 1000 rpm range; ± 0.2% in the 1000 – 26,000 rpm range
• Temperature set range: -20°C to +40°C
• Temperature accuracy (run mode): ± 2°C under normal laboratory conditions
• Operating temperature range: 10°C to 38°C
• Temperature control system: Non-CFC refrigerant
• Average heat output: 5 kW/8500 BTU/hr
• Noise: 63 dbA (1 m from instrument at maximum speed)
• Dimensions H x W x D: 1295 x 710 x 1055 mm (51 x 28 x 42 in)
• Height to top of deck: 850 mm (33 in)
• Depth with door open: 1125 mm (44 in)
• Weight: 390 kg (860 lb)
Optional Rotor

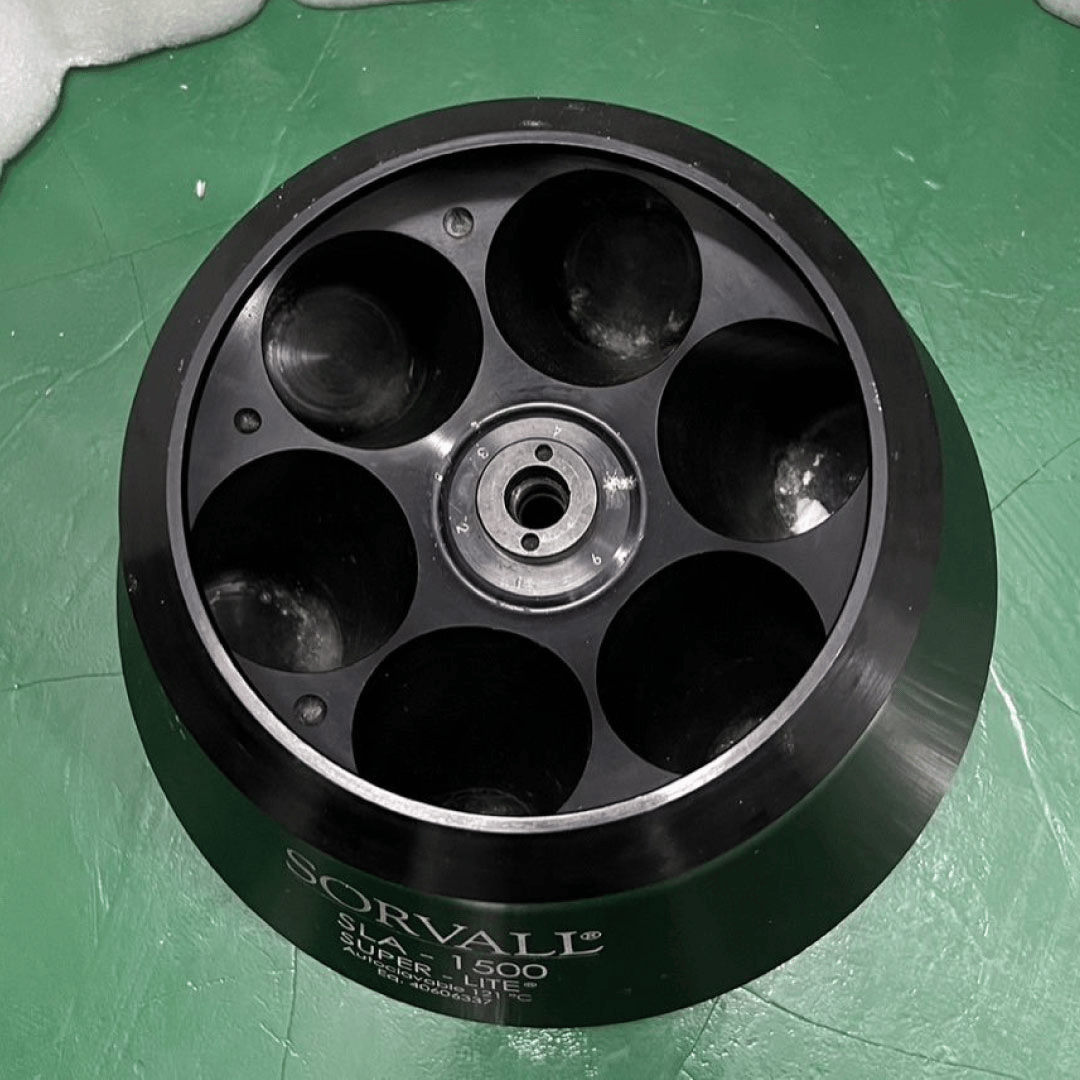

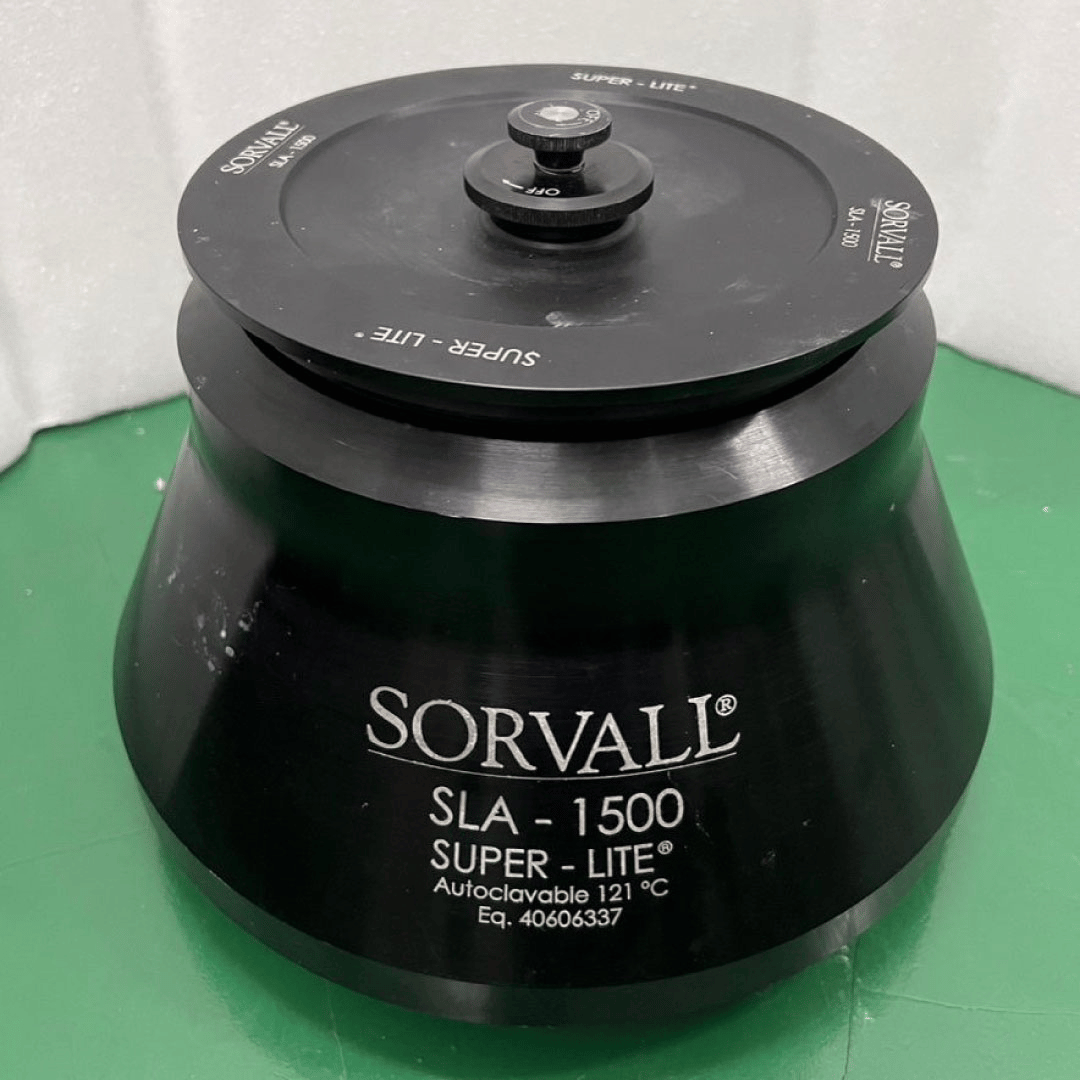

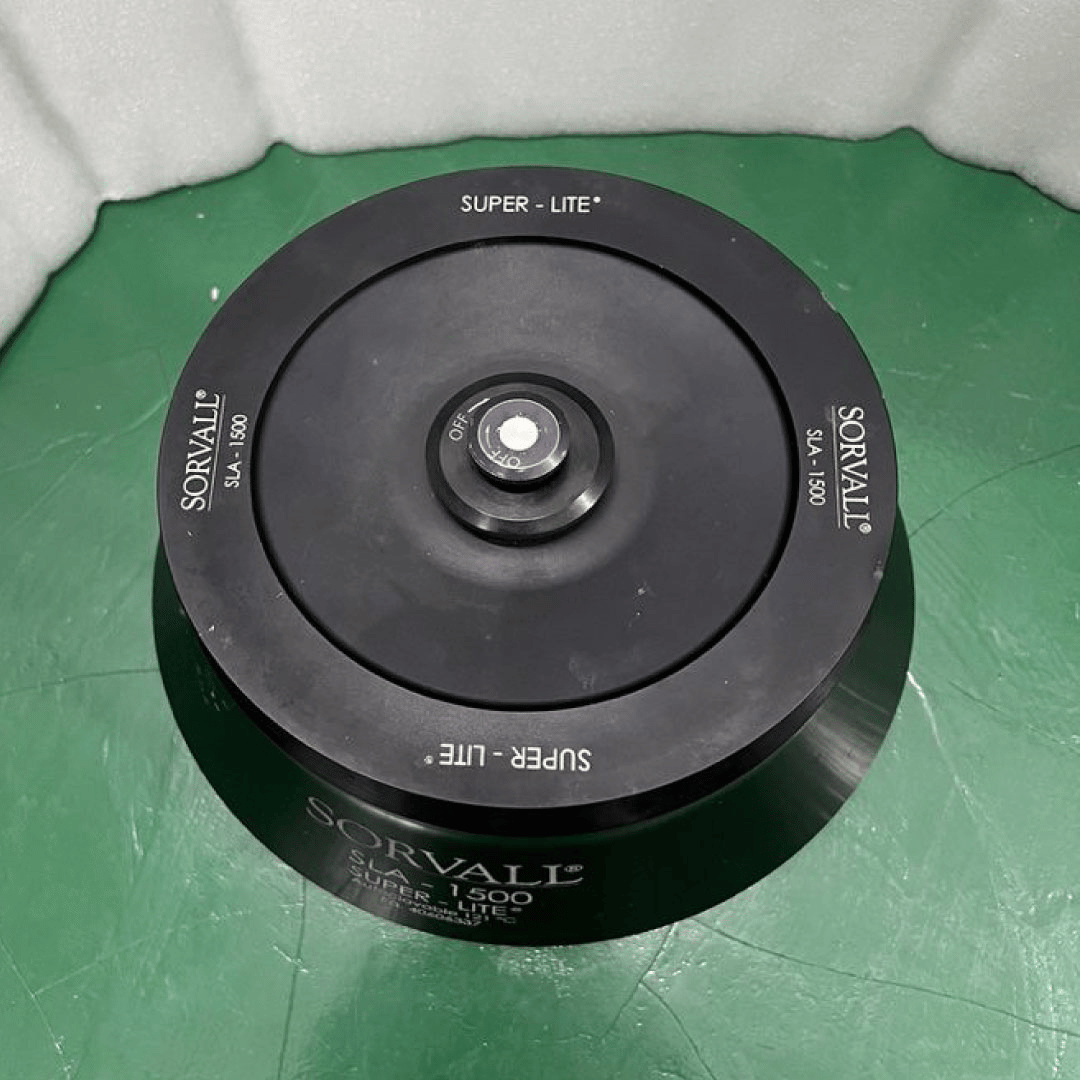

Sorvall SLA 1500 Fixed Angle Rotor
• Max speed : 15,000 rpm
• Max Rcf : 34,155 xg
• Max capacity : 6 x 250 ml

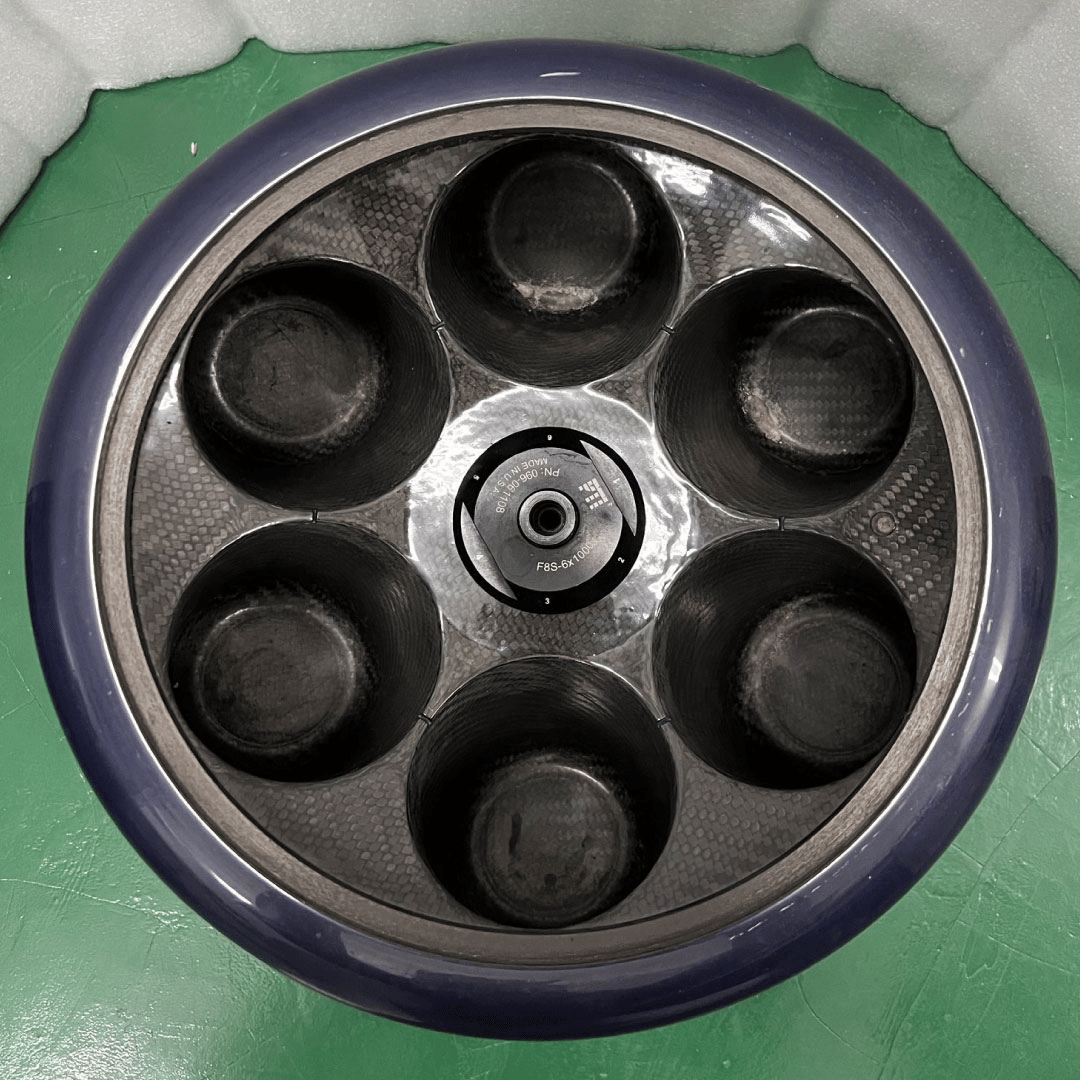

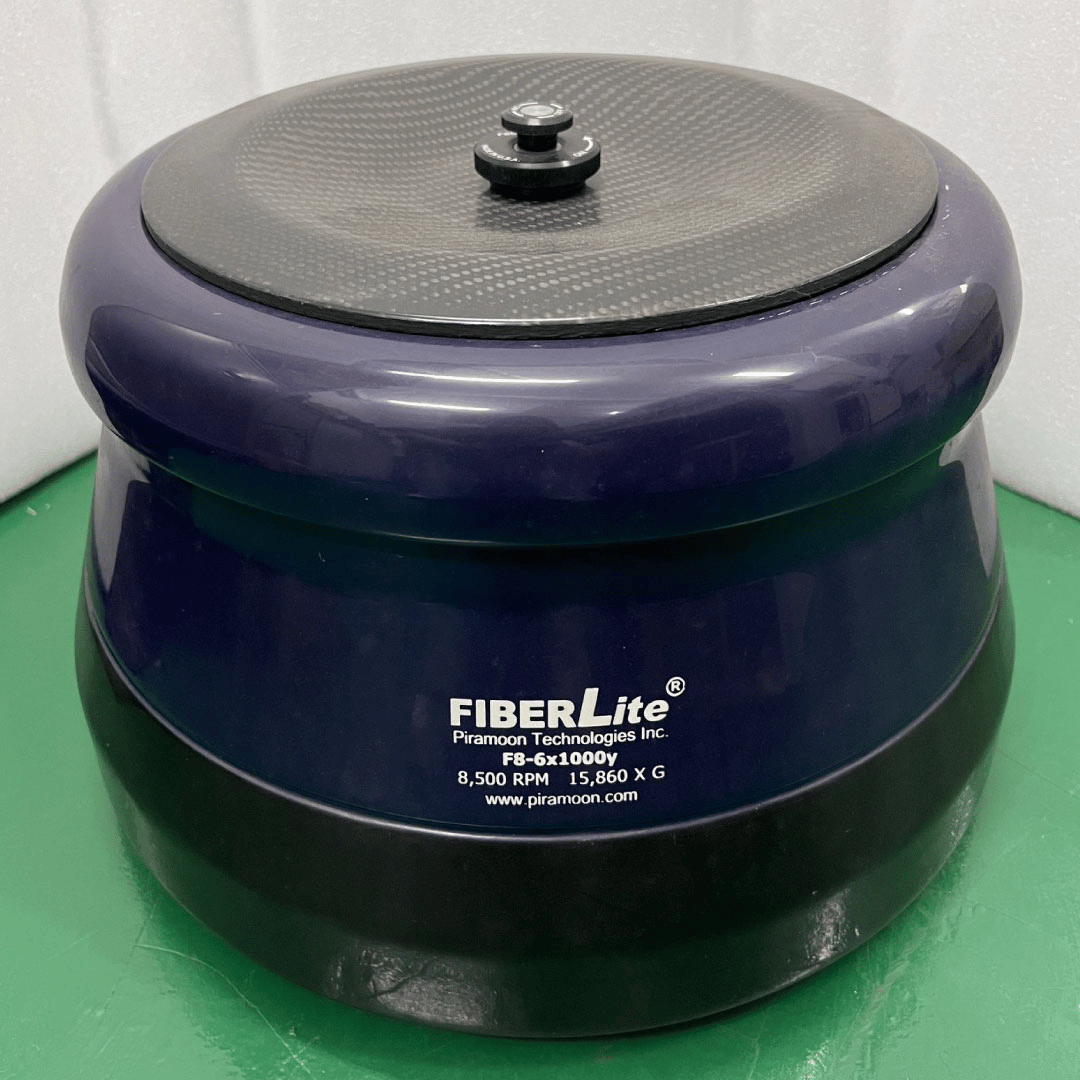

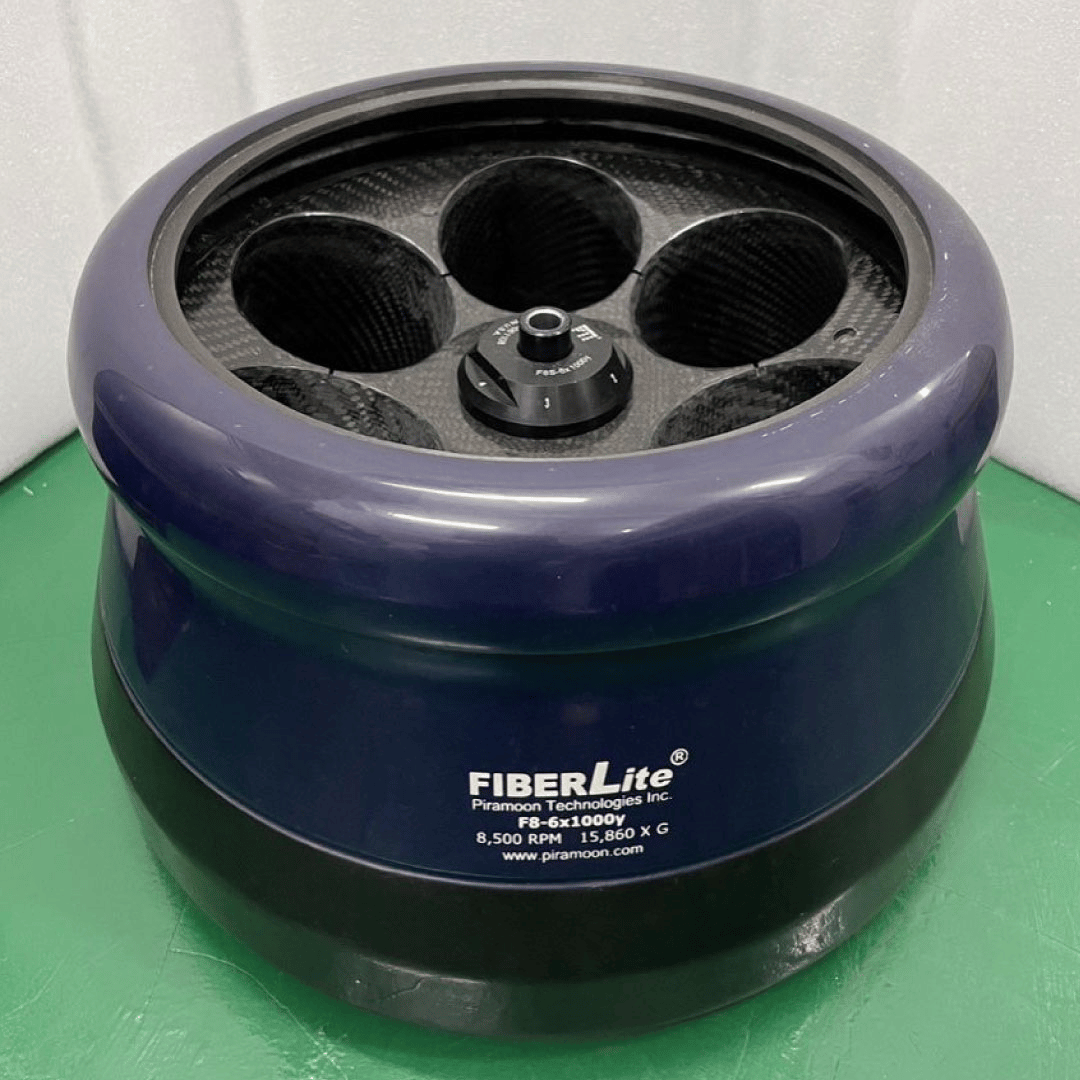

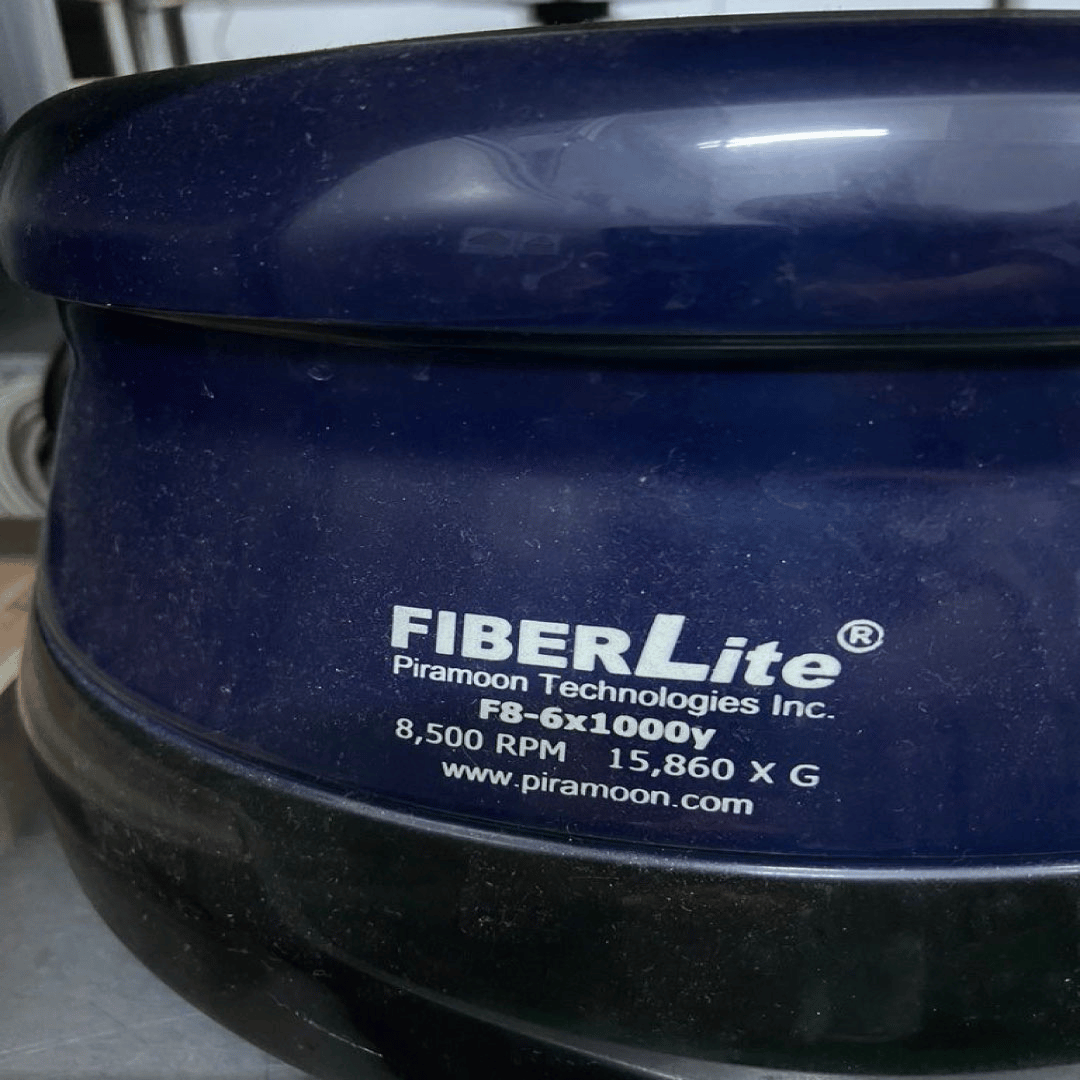

FiberLite F8-6x1000y
• Type : Fixed Angle rotor
• Capacity : 6 x 1000ml
• Max speed : 8500 rpm
• Max Rcf : 15900 xg
• Material : Carbon fiber composite

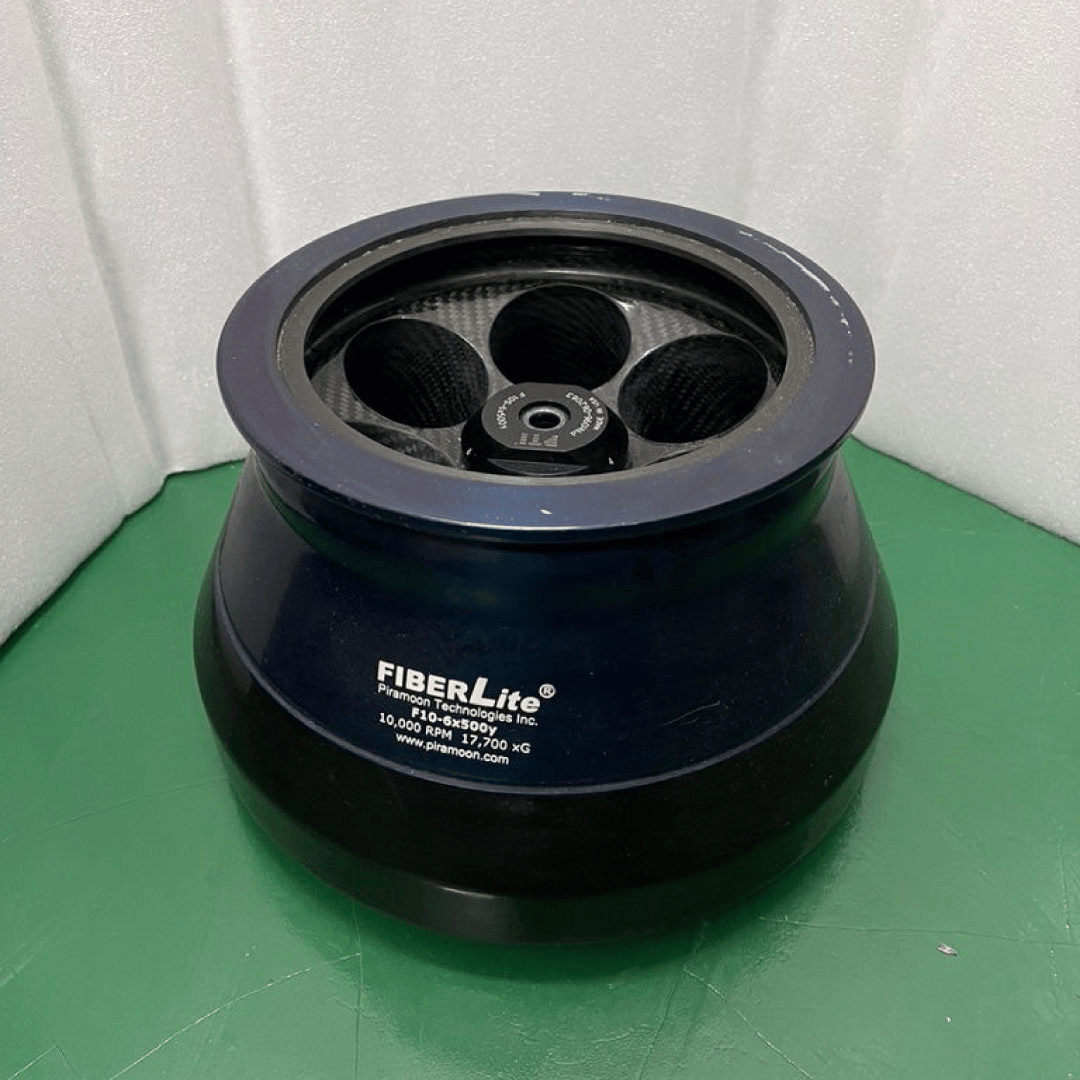

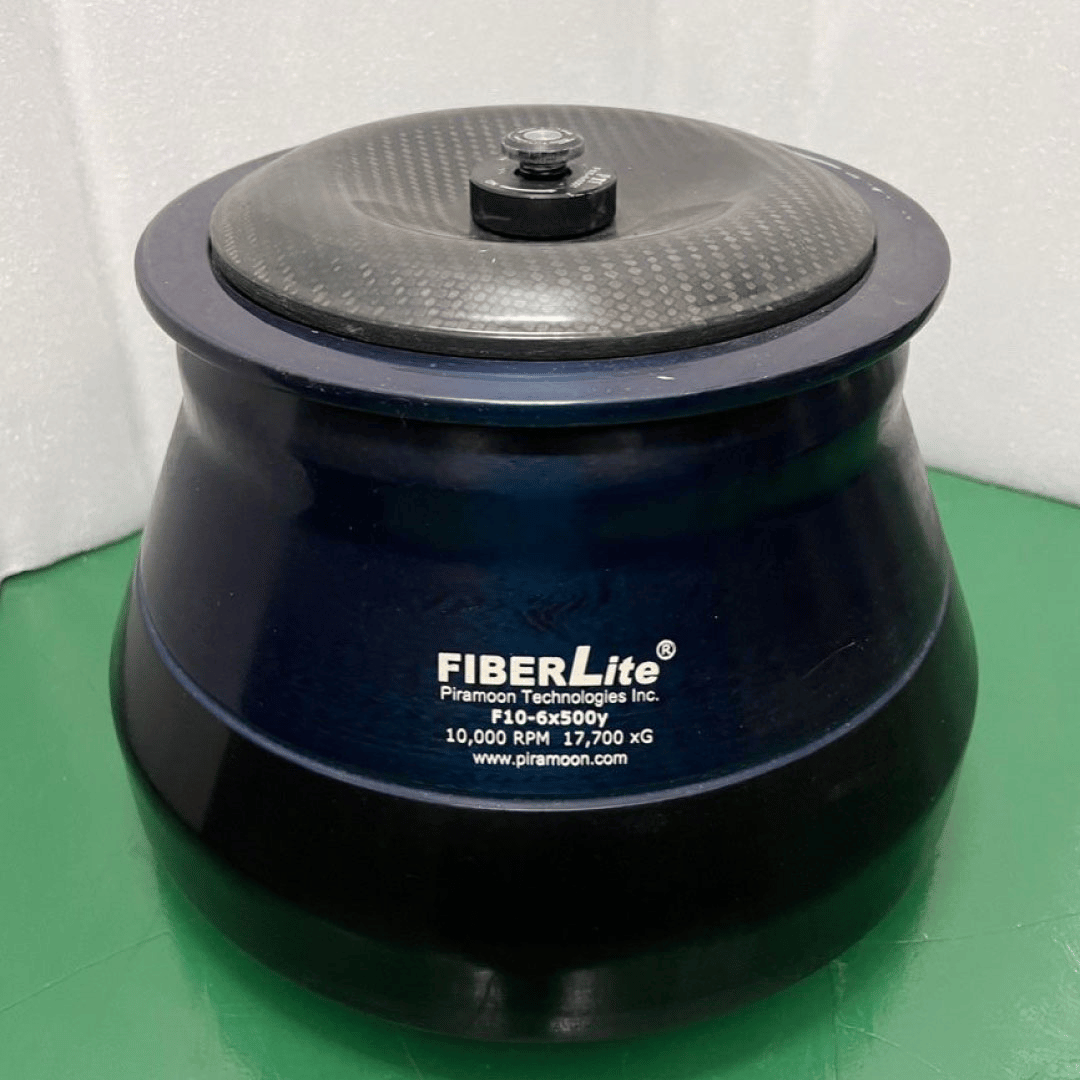

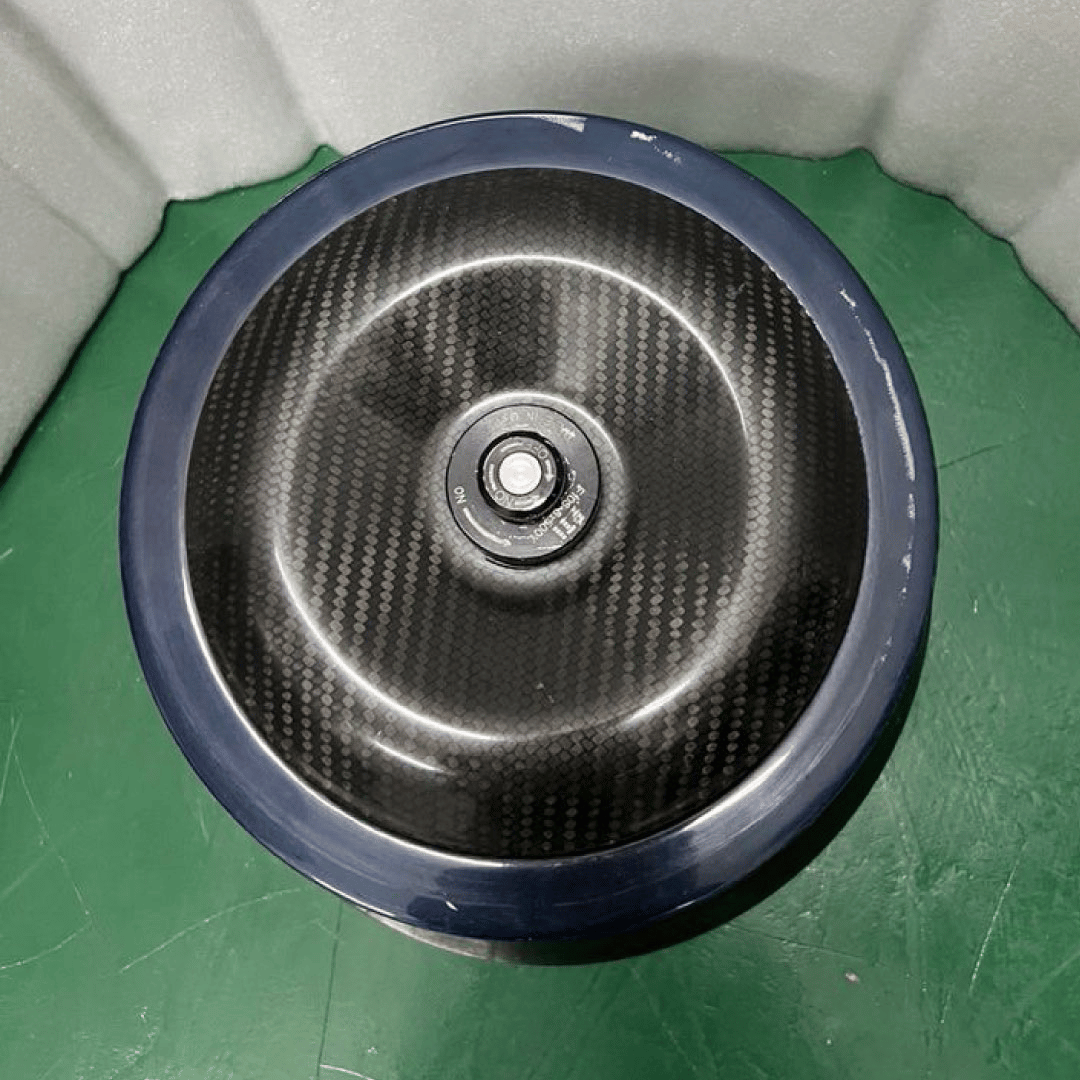

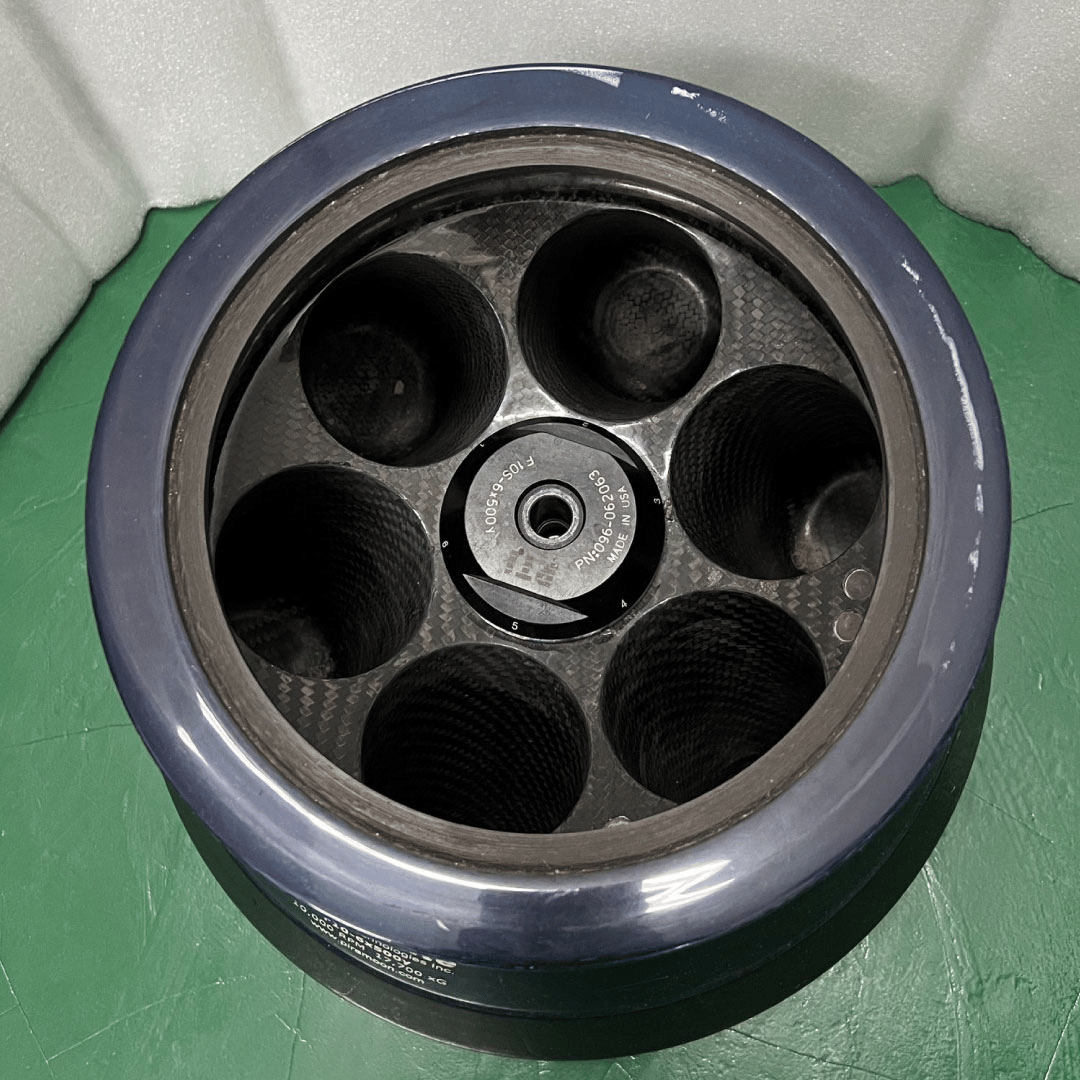

FiberLite F10-6x500y
• Type : Fixed Angle rotor
• Capacity : 6 x 500ml
• Max speed : 10,000 rpm
• Max Rcf : 17700 xg
• Material : Carbon fiber composite
