| Speed range | 2 – 50 rpm |
| Movement | rocking, 5° |
| Maximum permissible load | 5 kg |
| Acoustic pressure | < 50 dB (A), in accordance with IEC 61010 |
| Protection class (EN 60529) | IP30 |
| Drive | Asynchronous motor |
| Dimensions (W × H × D) | 320 × 185 × 375 mm |
| Weight | approx. 8 kg |
| Rated voltage | 230 V, 50 Hz or 115 V, 60 Hz |
| Protection class | I |
| Operating temperature | 5 °C – 31 °C up to 80 % rel. humidity | 32 °C – 40 °C up to 50 % rel. humidity (decreasing linearly) |
| Installation altitude | up to 2,000 m asl |
| Overheat protection | self-resetting |
| Usable area | 290 × 258 mm |
| Fuse | M 1,25 A (230 V) or T 2,0 A (115 V) |

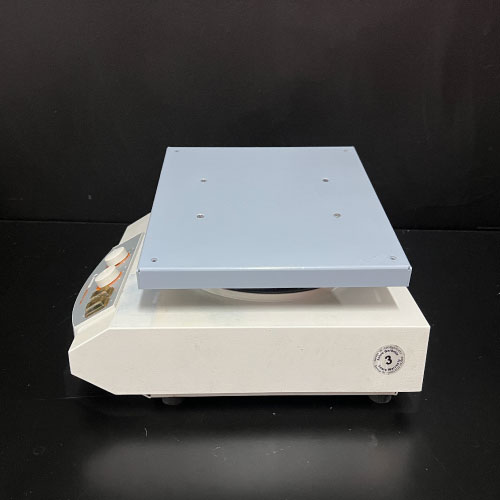

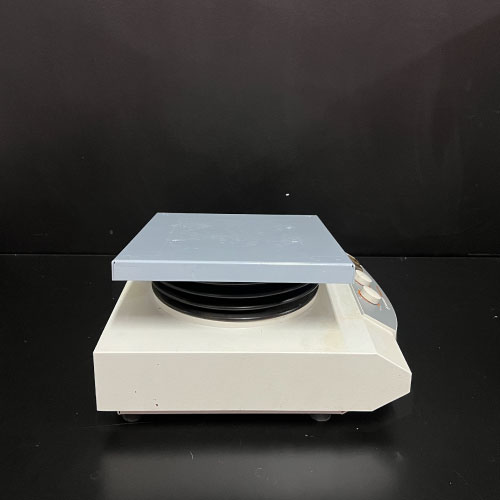

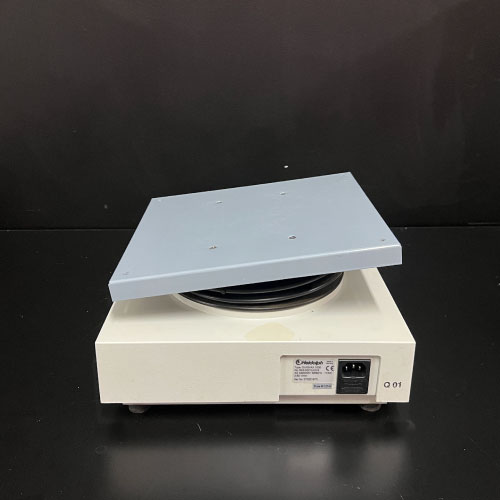

Platform Shakers
Model: Duomax 1030
Brand: Heidolph, Germany
